Ft_transcendence: Monolithic to Microservices Migration

Complete documentation of our architectural transformation journey from a monolithic application to a distributed microservices architecture deployed on Azure Cloud.

Project Summary

This documentation covers the complete migration of Ft_transcendence, a competitive gaming platform, from a monolithic architecture to a modern microservices setup utilizing Azure cloud infrastructure, GitHub Actions for CI/CD, and comprehensive security measures including Cloudflare WAF.

Architecture

Transformed from monolithic to microservices with API Gateway, Frontend, and Backend services.

Deployment

Automated CI/CD pipeline using GitHub Actions with self-hosted runners on Azure VMs.

Security

Comprehensive security with Cloudflare WAF, SSL/TLS encryption, and geo-blocking.

Architecture Transformation

Complete Architectural Overview

Architectural display video walkthrough explaining the complete microservices transformation process and deployment strategy.

From Monolithic to Microservices

The Transcendence application was successfully migrated from a traditional monolithic architecture to a modern microservices setup, enabling better scalability, maintainability, and deployment flexibility.

Before: Monolithic Architecture

• Single deployable unit containing all functionality
• Tight coupling between components
• Difficult to scale individual components
• Single point of failure

After: Microservices Architecture

Separate services: Frontend, API Gateway, Backend
Loose coupling with clear service boundaries
Independent scaling and deployment
Fault isolation and resilience

Service Communication Flow

The microservices architecture implements a clear communication pattern ensuring security and proper separation of concerns:


                                    Frontend → API Gateway → Backend Service → PostgreSQL Database

Frontend Service

React-based user interface that only communicates with the API Gateway

API Gateway

Central entry point that routes requests to appropriate backend services

Backend Service

Core business logic that only accepts requests from API Gateway

Azure Cloud Infrastructure

Azure Cloud Resources

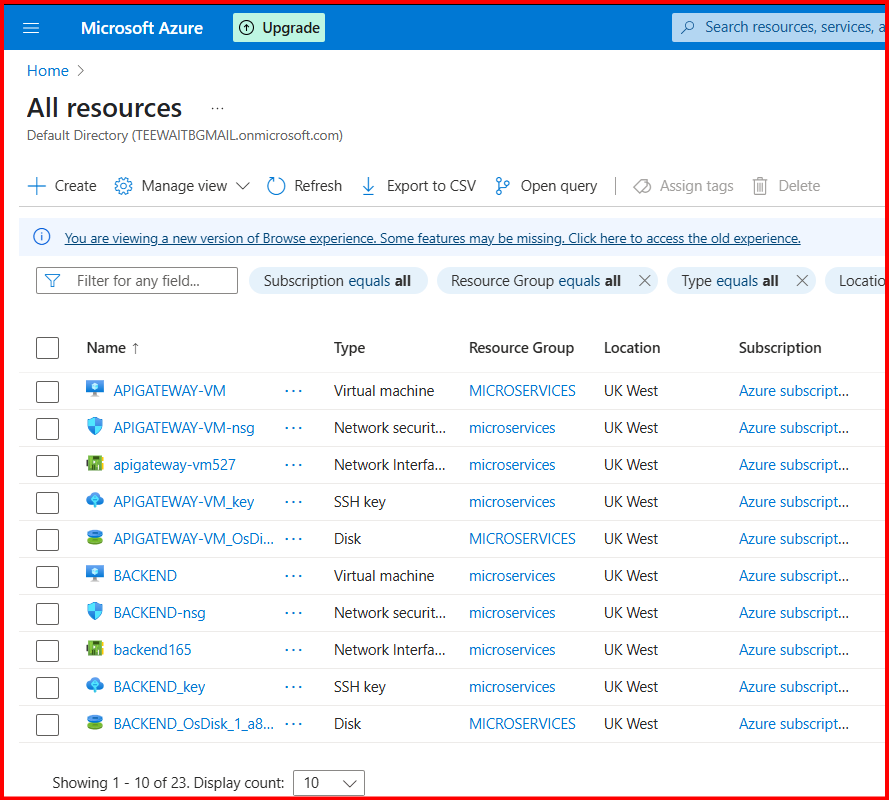

Complete Azure resource group showing all virtual machines, network security groups, SSH keys, and disk storage for the microservices deployment.

Virtual Machine Configuration

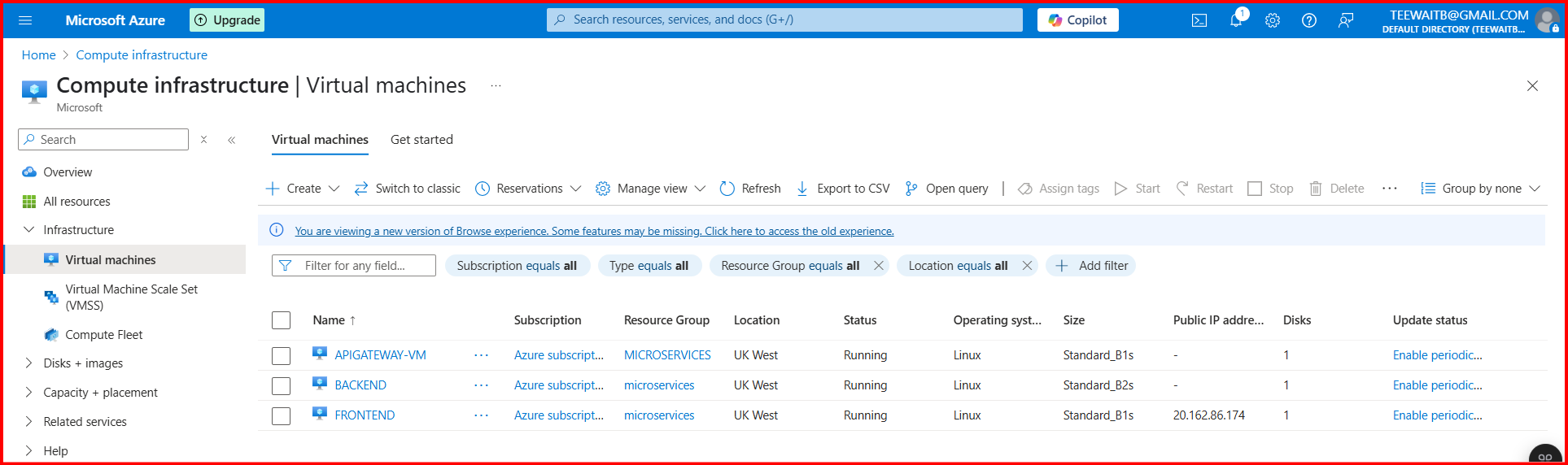

Azure Virtual Machine Management Interface

Azure VM management showing the running Linux virtual machines for our microservices deployment.

APIGATEWAY-VM

• Linux Ubuntu
• Standard_B1s
• UK West Region
• Self-hosted Runner

BACKEND-VM

• Linux Ubuntu
• Standard_B1s
• UK West Region
• Self-hosted Runner

FRONTEND-VM

• Linux Ubuntu
• Standard_B1s
• UK West Region
• GitHub Actions Runner

Container Registry (ACR)

All Docker images are stored in the kodmicroservices Azure Container Registry for efficient deployment and version management.

# Container images stored in ACR
kodmicroservices.azurecr.io/frontend:latest
kodmicroservices.azurecr.io/apigateway:latest
kodmicroservices.azurecr.io/backend:latest

GitHub Actions CI/CD Pipeline

CI/CD Pipeline Configuration

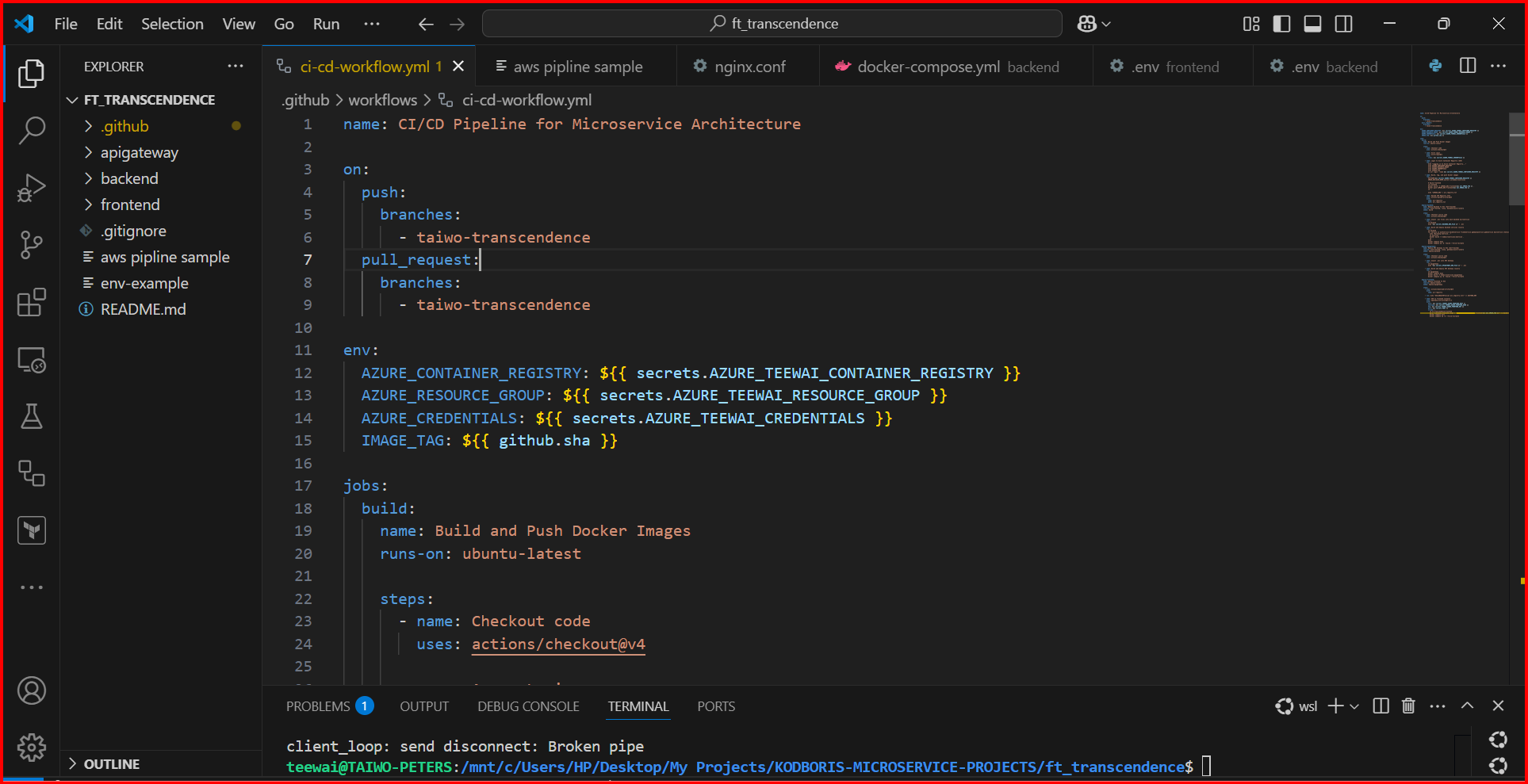

GitHub Actions workflow YAML configuration showing the automated CI/CD pipeline for microservice architecture deployment.

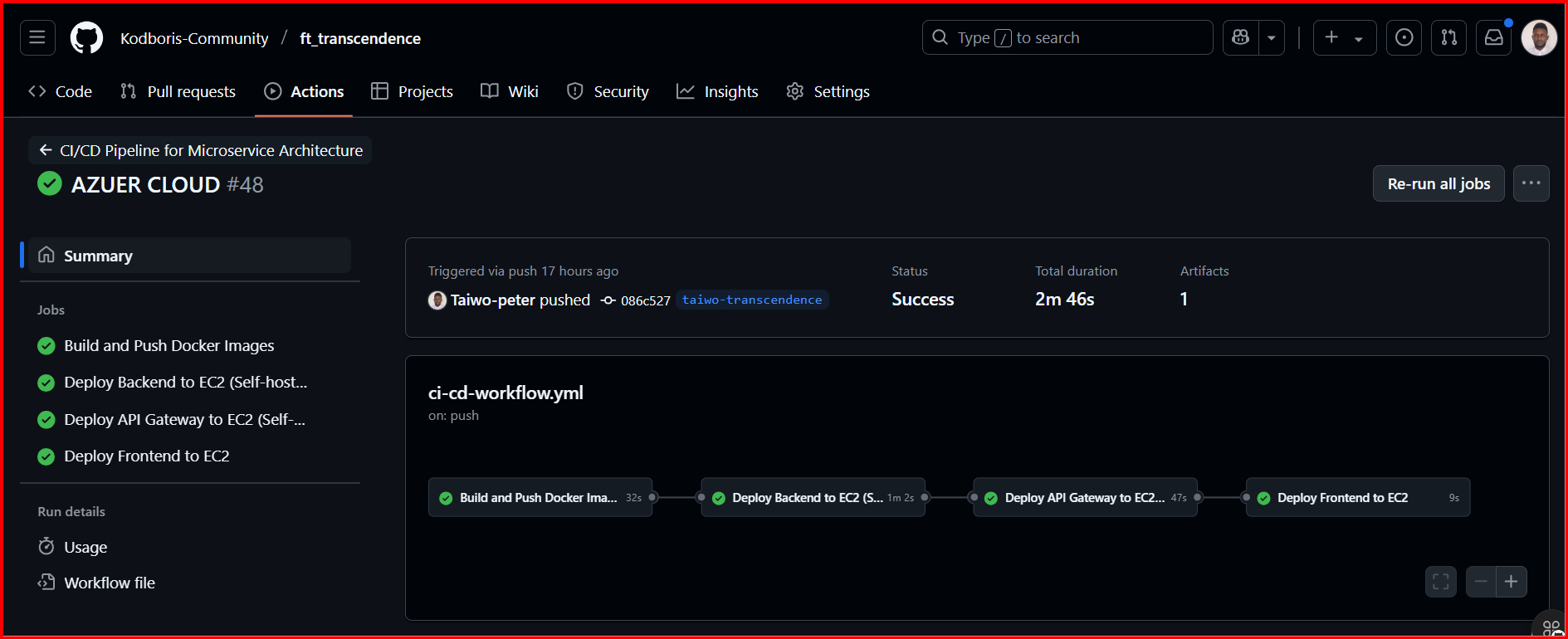

Successful deployment pipeline execution showing all four stages: Build and Push Docker Images, Deploy Backend to EC2, Deploy API Gateway to EC2, and Deploy Frontend to EC2.

Pipeline Stages

1

Build and Push Docker Images

1h 35m

2

Deploy Backend to EC2

2m 20s

3

Deploy API Gateway to EC2

1m 16s

4

Deploy Frontend to EC2

55s

Self-Hosted Runners

GitHub Runners Configuration

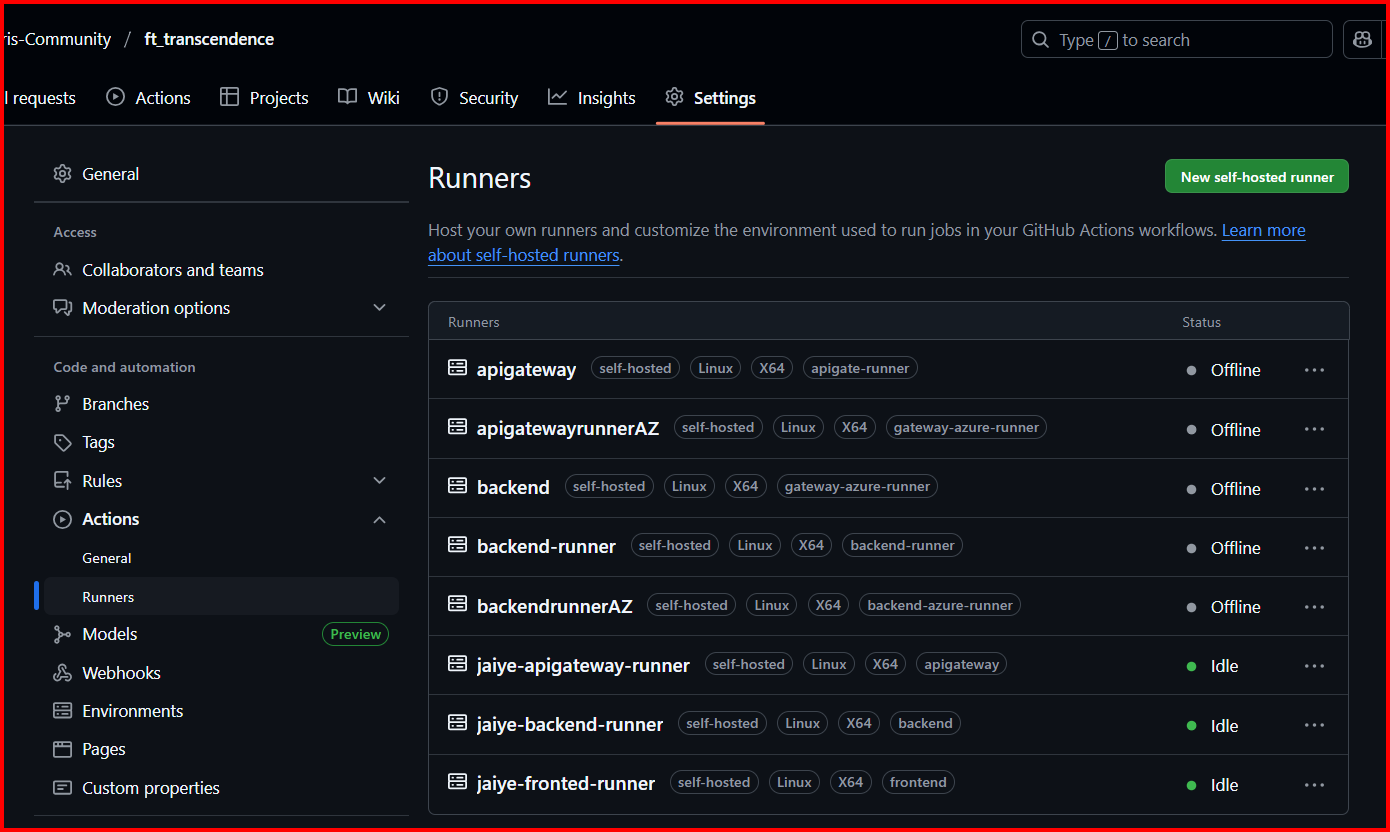

GitHub repository showing configured self-hosted runners for API Gateway and Backend services running on Azure virtual machines.

Self-hosted runners provide secure, dedicated compute resources for building and deploying microservices directly on Azure infrastructure, enabling faster builds and enhanced security control.

API Gateway Runners

• apigateway: Self-hosted, Linux X64
• apigatewayrunnersAZ: Self-hosted, Linux X64
• jaiye-apigateway-runner: Self-hosted, Linux X64 (Idle)
• Direct deployment to Azure VM

Backend Runners

• backend: Self-hosted, Linux X64
• backend-runner: Self-hosted, Linux X64
• backendrunnerAZ: Self-hosted, Linux X64
• jaiye-backend-runner: Self-hosted, Linux X64 (Idle)

Secrets Management

GitHub Repository Secrets

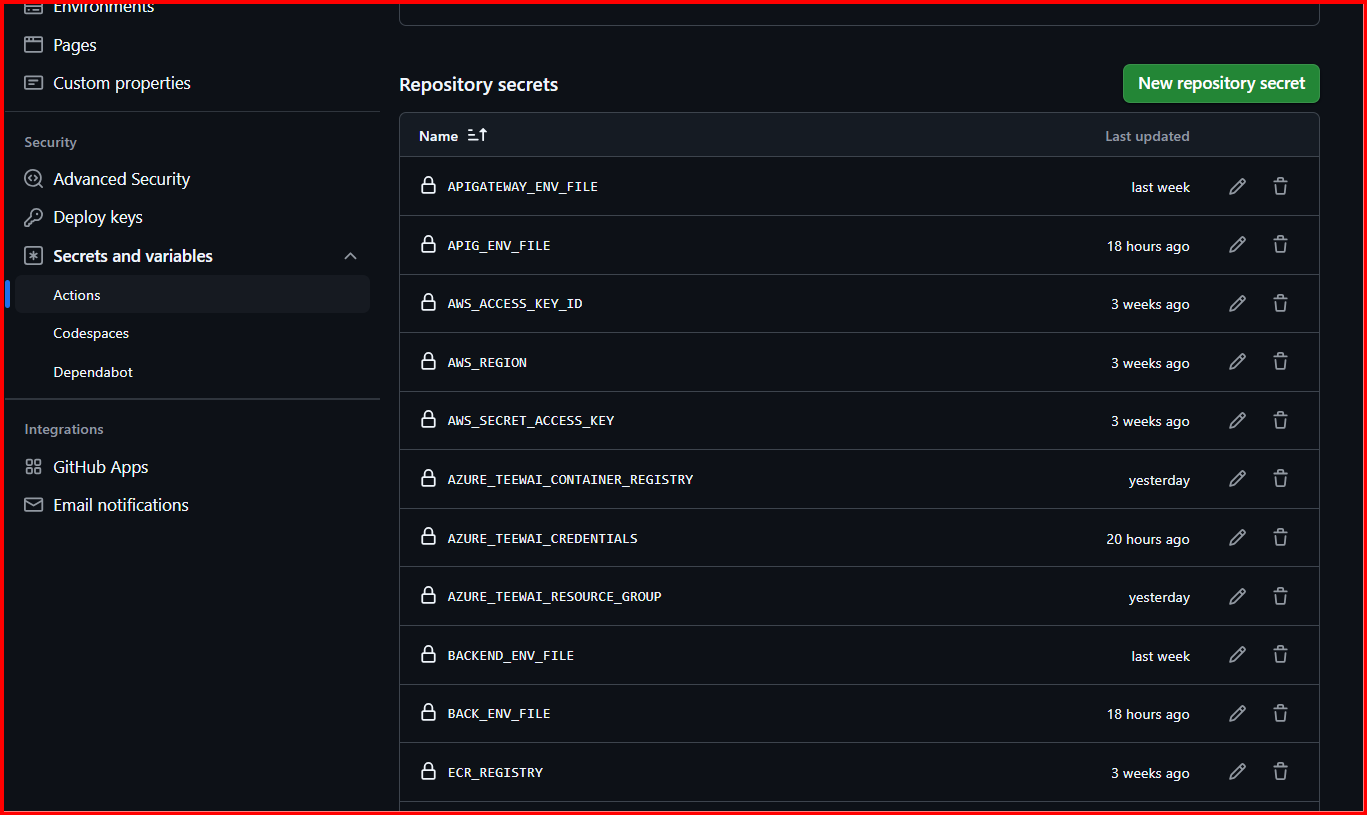

GitHub Actions Repository Secrets Configuration

Comprehensive secrets management showing Azure credentials, environment files, and ACR registry access tokens stored securely in GitHub repository secrets.

All sensitive configuration data is stored as encrypted secrets in GitHub, ensuring secure access to Azure resources, container registries, and environment-specific configurations.

Azure Integration Secrets

• AZURE_TEENAT_CONTAINER_REGISTRY
• AZURE_TEENAT_CREDENTIALS
• AZURE_TEENAT_RESOURCE_GROUP
• AWS_ACCESS_KEY_ID
• AWS_SECRET_ACCESS_KEY
• AWS_REGION

Application Secrets

• APIGATEWAY_ENV_FILE
• BACKEND_ENV_FILE
• BACK_ENV_FILE
• APIG_ENV_FILE
• ECR_REGISTRY

DNS & Cloudflare Configuration

Domain Management Setup

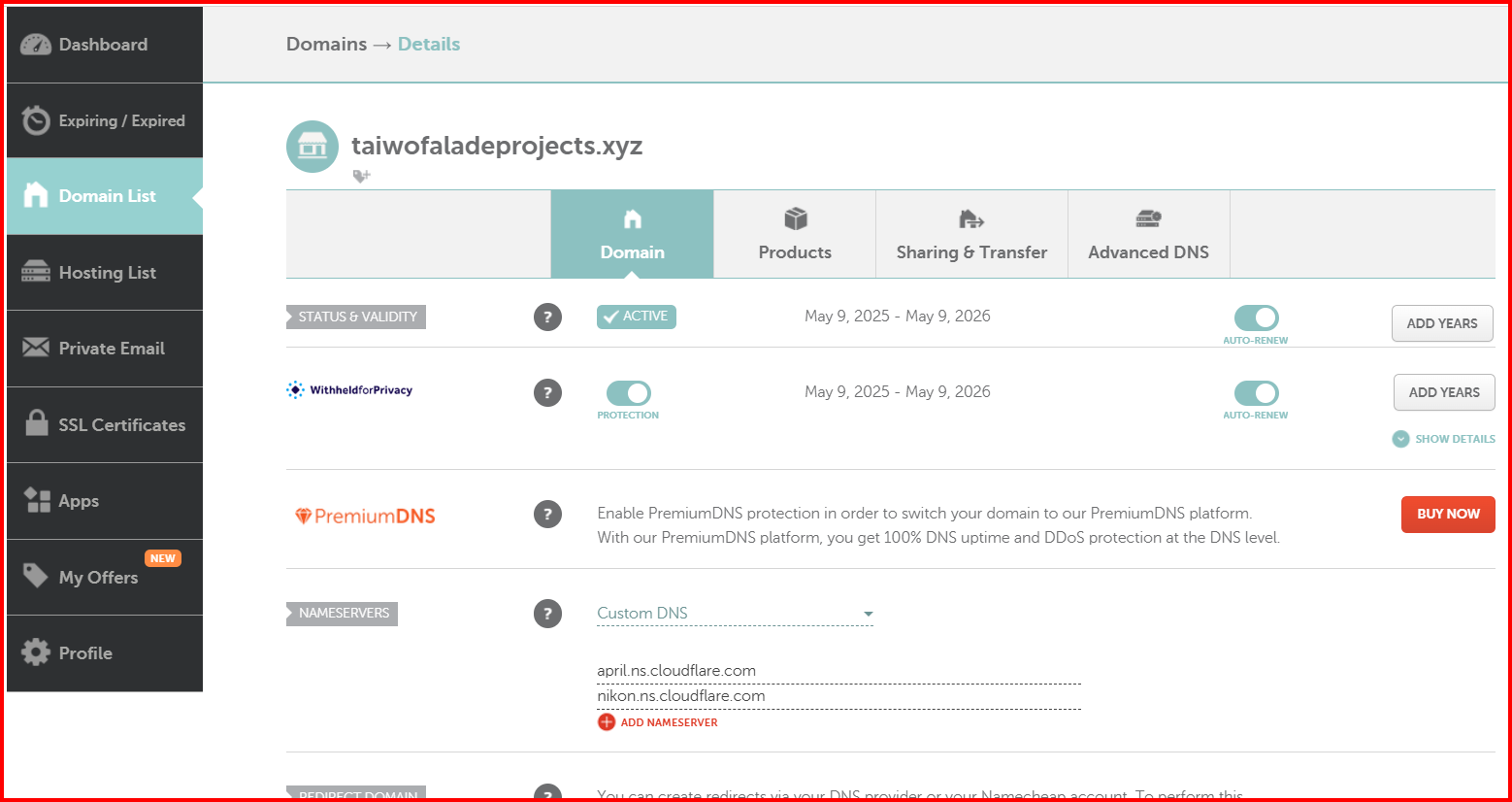

Namecheap domain management for taiwofaladeprojects.xyz showing domain status, DNS configuration, and Cloudflare nameserver integration.

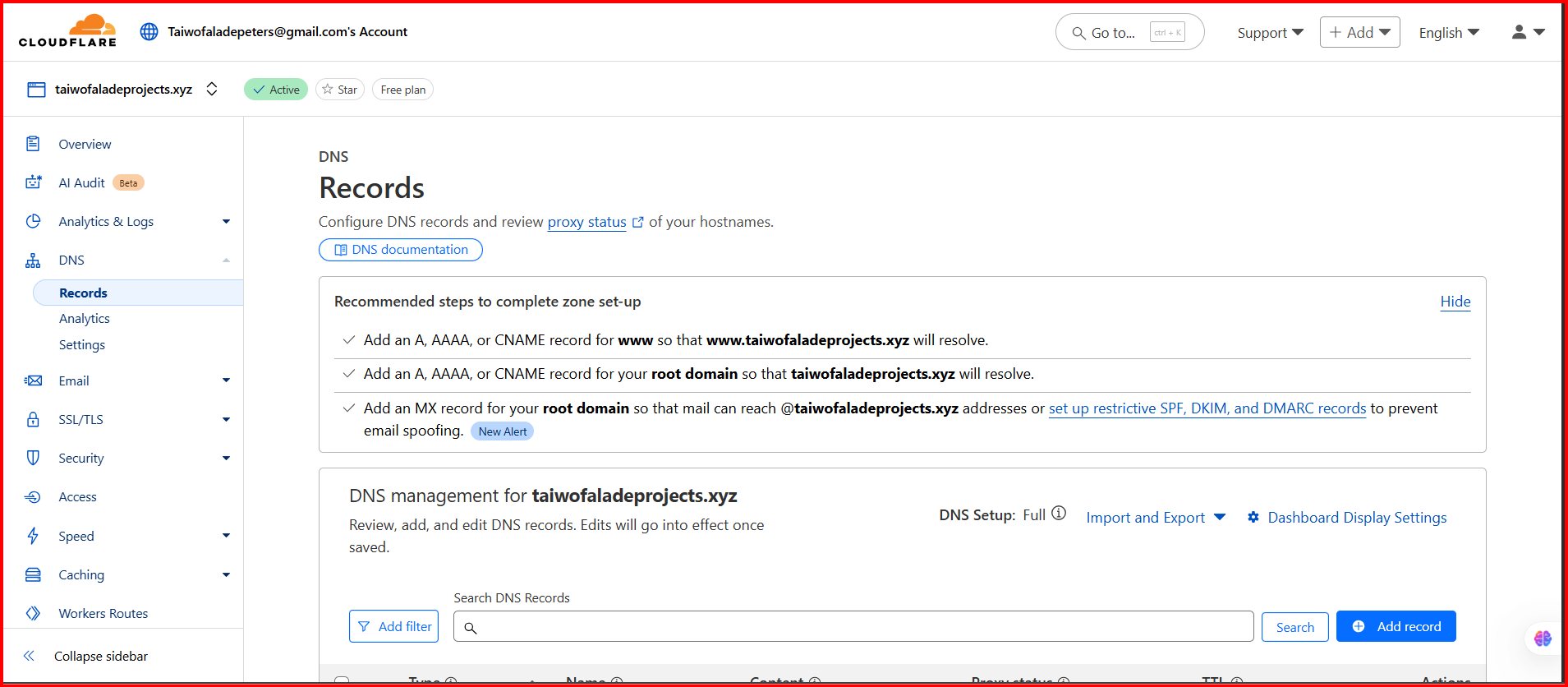

Cloudflare DNS management showing A, AAAA, and CNAME record configuration for routing traffic to Azure infrastructure.

The domain infrastructure uses Namecheap for domain registration and Cloudflare for DNS management, providing global CDN capabilities, DDoS protection, and advanced security features.

Namecheap Configuration

• Domain: taiwofaladeprojects.xyz
• Status: Active (Auto-renew enabled)
• WhoisGuard: Privacy protection enabled
• Custom DNS: Cloudflare nameservers
• SSL Certificates: Managed externally

Cloudflare Features

• Global CDN network
• DNS management with import/export
• DDoS protection
• Web Application Firewall
• SSL/TLS encryption

Web Application Firewall & Security

Cloudflare WAF Configuration

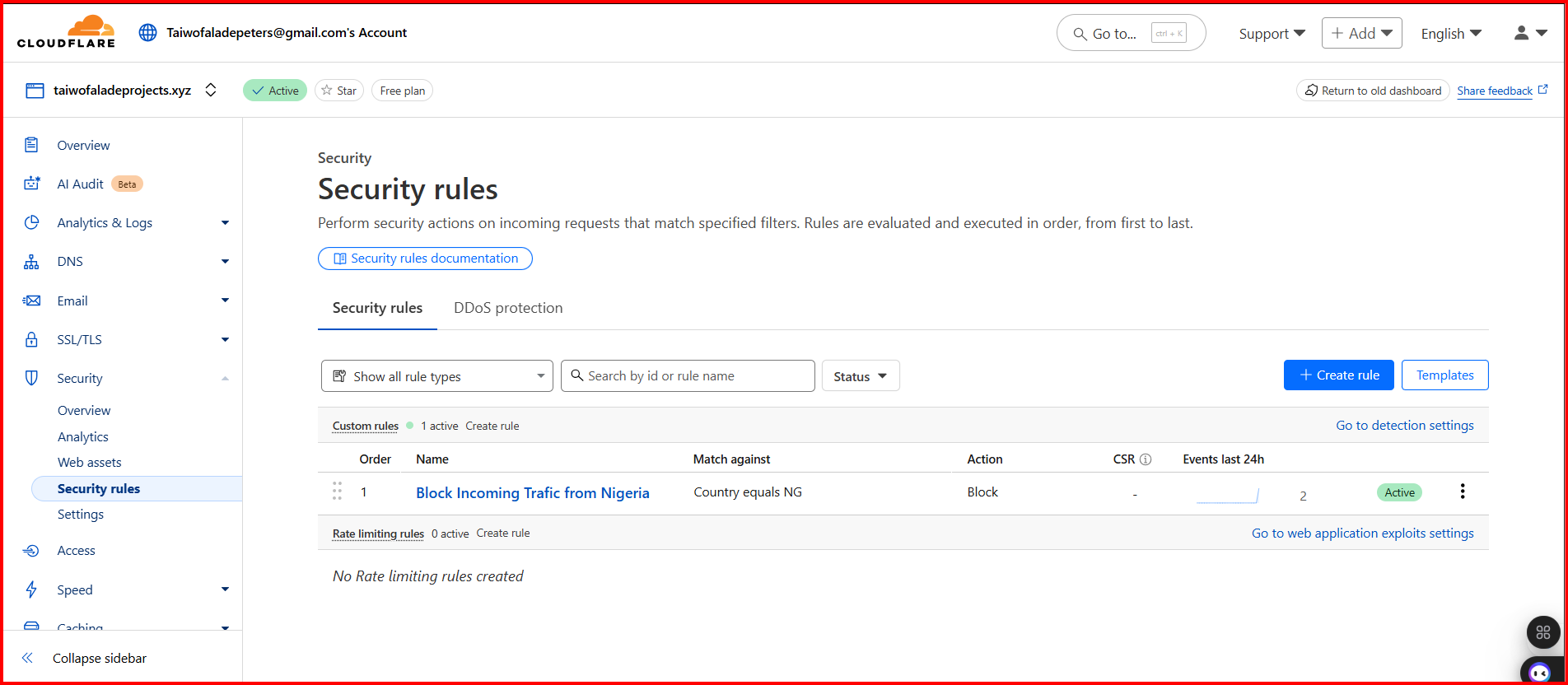

Cloudflare WAF Security Rules Configuration

Cloudflare Web Application Firewall showing active security rule blocking incoming traffic from Nigeria for enhanced protection.

The Web Application Firewall provides comprehensive protection against various attacks including DDoS, SQL injection, XSS, and geographic restrictions based on business requirements.

Geographic Blocking

Block Incoming Traffic from Nigeria Active

Rule: Country equals NG → Block

Events (24h): 2 blocked requests

Action: Connection terminated before reaching origin server

DDoS Protection

• Layer 3/4 protection
• Application layer filtering
• Rate limiting
• Bot management

OWASP Protection

• SQL injection prevention
• XSS attack blocking
• CSRF protection
• Command injection filtering

Custom Rules

• Geographic restrictions
• IP whitelisting/blacklisting
• User agent filtering
• Request pattern matching

SSL/TLS Configuration with Let's Encrypt

Nginx SSL Implementation

The frontend service uses Nginx as a reverse proxy server with SSL/TLS encryption provided by Let's Encrypt certificates for secure HTTPS communication.

Let's Encrypt Benefits

• Free SSL/TLS certificates
• Automated certificate renewal
• Domain validation
• Browser trust and compatibility
• 90-day certificate lifecycle

Nginx Configuration

• HTTP to HTTPS redirect
• SSL certificate management
• Static file serving
• Proxy pass to backend services
• Security headers implementation

SSL Virtual Host Configuration

server {
    listen 80;
    server_name yourdomain.com www.yourdomain.com;

    # Redirect HTTP to HTTPS
    return 301 https://$server_name$request_uri;
}

server {
    listen 443 ssl http2;
    server_name yourdomain.com www.yourdomain.com;

    # SSL Configuration
    ssl_certificate /etc/letsencrypt/live/yourdomain.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/yourdomain.com/privkey.pem;

    # SSL Security Headers
    ssl_protocols TLSv1.2 TLSv1.3;
    ssl_ciphers ECDHE-RSA-AES256-GCM-SHA512:DHE-RSA-AES256-GCM-SHA512;
    ssl_prefer_server_ciphers off;

    # Security Headers
    add_header X-Frame-Options DENY;
    add_header X-Content-Type-Options nosniff;
    add_header X-XSS-Protection "1; mode=block";
    add_header Strict-Transport-Security "max-age=63072000; includeSubDomains; preload";

    # Frontend Static Files
    location / {
        root /var/www/html;
        index index.html index.htm;
        try_files $uri $uri/ /index.html;
    }

    # API Proxy to API Gateway
    location /api/ {
        proxy_pass http://api-gateway-internal:3000/;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

Container Management & Port Configuration

Service Port Exposure

Each microservice exposes specific ports for different functionalities while maintaining security through restricted communication paths.

Frontend Service

HTTP: 80

HTTPS: 443

• Nginx web server

• Static file serving

• SSL termination

API Gateway

HTTP API: 3000

Health Check: 3000/health

• Request routing

• Authentication

• Rate limiting

Backend Service

API Server: 3001

Database: 5432

• Business logic

• Database operations

• Internal API

Communication Flow

Restricted Communication Pattern

Frontend → API Gateway Only allowed communication

API Gateway → Backend Only allowed communication

Frontend ✕ Backend Direct access blocked

Debugging Process & Container Troubleshooting

Container Debugging Methodology

When the application wasn't coming up properly, we implemented a systematic debugging approach by accessing each container individually to identify and resolve issues.

Common Issues Encountered

• Database connection timeouts
• Environment variable mismatches
• Port binding conflicts
• Container startup dependencies
• Network connectivity problems
• SSL certificate issues

Debugging Tools Used

• Docker exec for container access
• Container logs analysis
• Network connectivity testing
• Process monitoring
• Configuration validation
• Health check endpoints

Step-by-Step Debugging Process

Step 1: Container Access and Inspection

# Check running containers
docker ps -a

# Access frontend container
docker exec -it frontend-container /bin/bash

# Check Nginx configuration
nginx -t
cat /etc/nginx/sites-available/default

# Verify SSL certificates
ls -la /etc/letsencrypt/live/yourdomain.com/

# Check Nginx error logs
tail -f /var/log/nginx/error.log

First, we accessed the frontend container to verify Nginx configuration and SSL certificate setup.

Step 2: API Gateway Diagnostics

# Access API Gateway container
docker exec -it apigateway-container /bin/bash

# Check application logs
npm run logs
tail -f /app/logs/application.log

# Test internal connectivity
curl -i http://localhost:3000/health
curl -i http://backend:3001/api/health

# Verify environment variables
env | grep -E "(DATABASE|BACKEND|PORT)"

# Check process status
ps aux | grep node

We diagnosed API Gateway connectivity issues and verified environment configurations.

Database Dependencies & Container Orchestration

PostgreSQL Dependency Management

The backend containers are configured with proper dependency management to ensure PostgreSQL database is fully ready before application startup.

Critical Issue: Backend containers literally wait for PostgreSQL database to start and get connected before launching application services. This solved initial startup failures where services would attempt to connect to unavailable databases.

Connection Strategy

• Wait for PostgreSQL port 5432
• Retry connection every 5 seconds
• Maximum 30 retry attempts
• Health check verification
• Graceful failure handling

Database Configuration

• Host: postgres (Docker network)
• Port: 5432
• Connection pooling enabled
• SSL mode: prefer
• Timeout: 30 seconds

#!/bin/bash
# Database wait script implemented in backend containers

echo "Waiting for PostgreSQL database..."

until pg_isready -h postgres -p 5432 -U $DB_USER; do
  echo "PostgreSQL is unavailable - sleeping for 5 seconds"
  sleep 5
  ((attempts++))

  if [ $attempts -eq 30 ]; then
    echo "PostgreSQL connection failed after 30 attempts"
    exit 1
  fi
done

echo "PostgreSQL is ready - starting application"
exec "$@"

Transcendence Game Application

Game Video Demonstration

Live gameplay demonstration of the Transcendence Pong game showing real-time multiplayer functionality and interactive gameplay mechanics.

Game Interface & Features

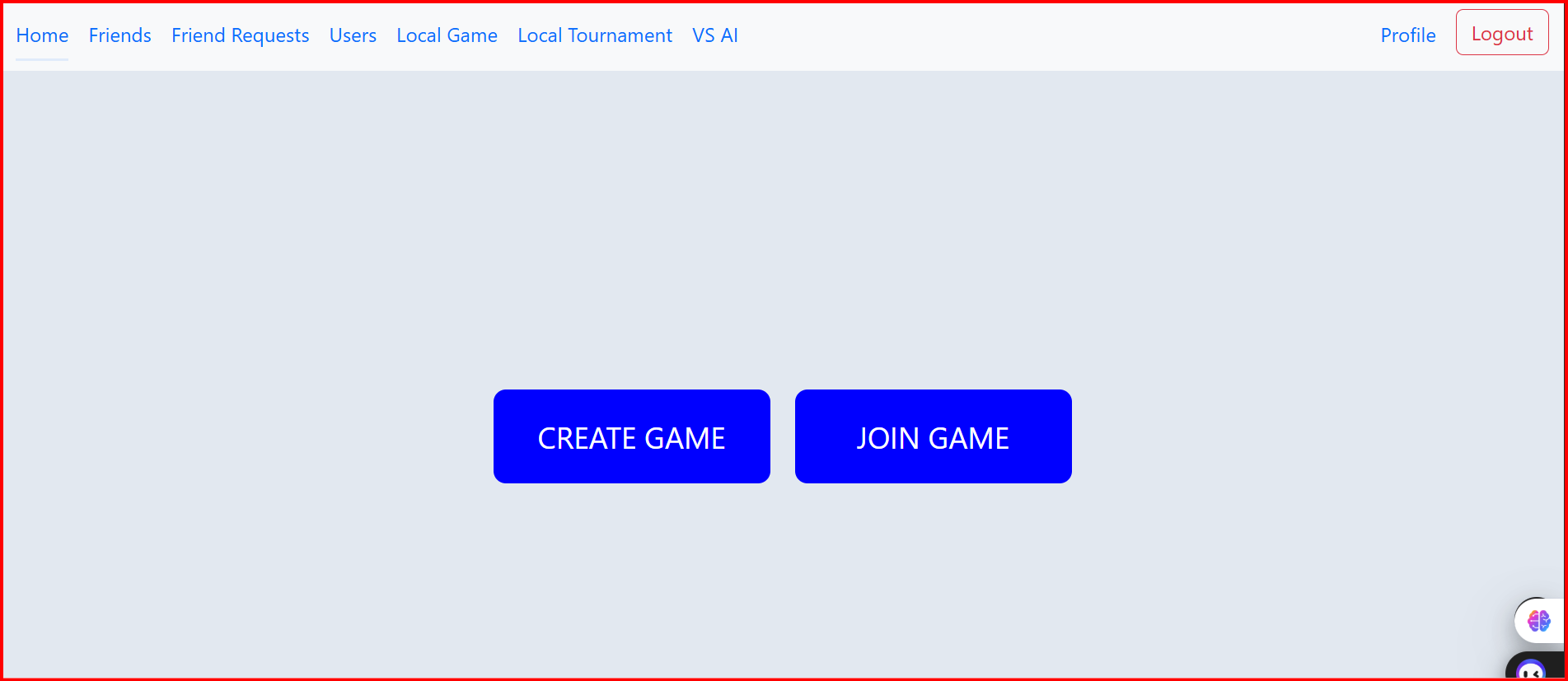

Game Startup Section showing CREATE GAME and JOIN GAME options

Game startup interface providing options to create new games or join existing tournaments with real-time multiplayer capabilities.

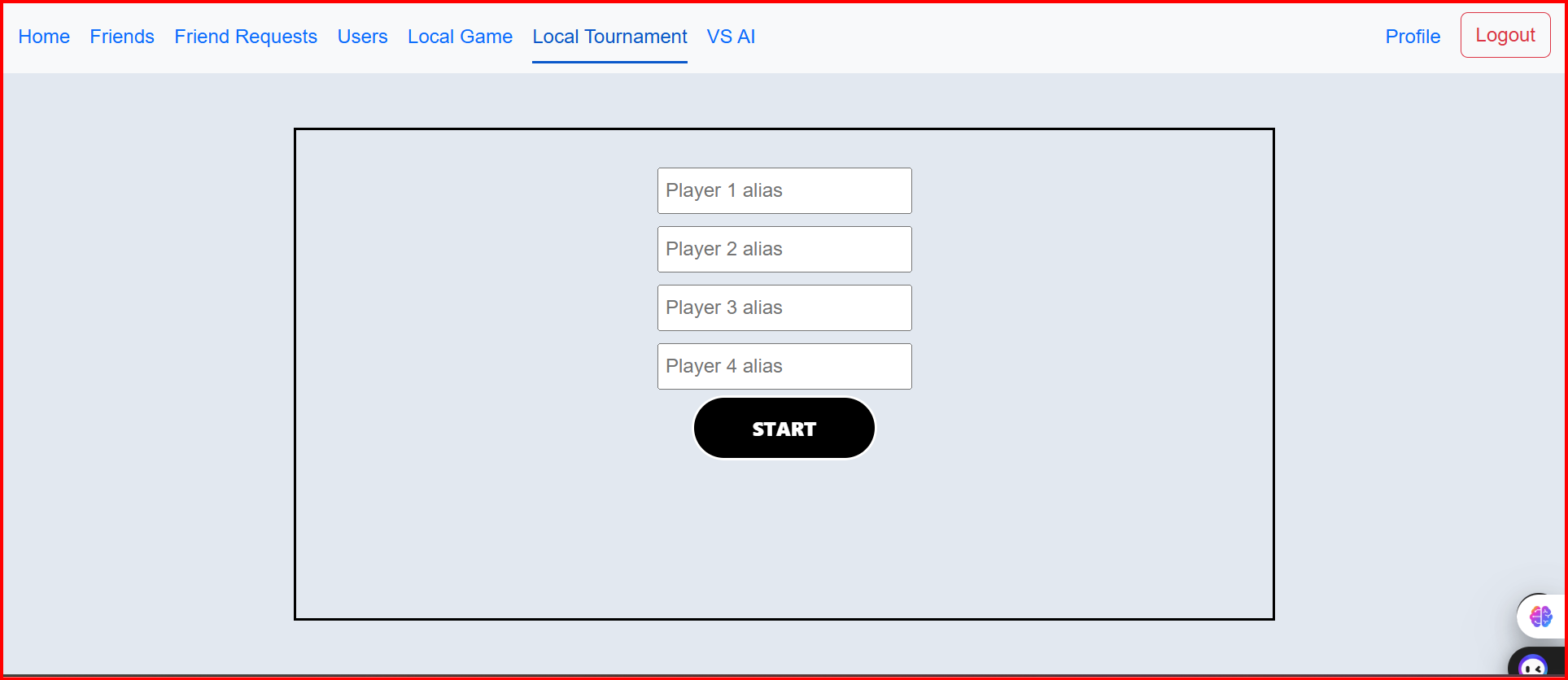

Players List showing multiplayer game setup

Multiplayer game lobby showing player alias input fields for up to 4 players with start game functionality.

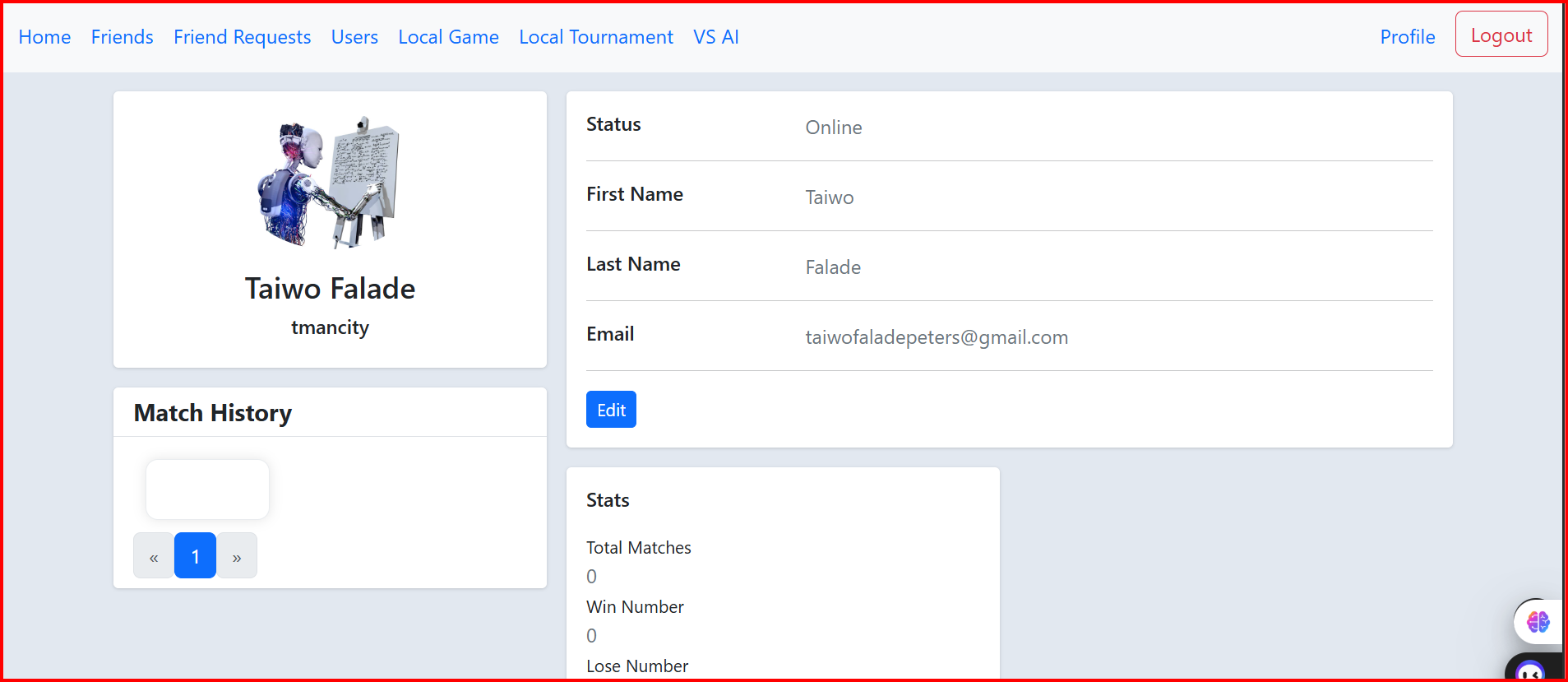

User profile interface displaying player statistics, match history, win/loss records, and account management features.

The Transcendence game is an advanced version of the classic Pong game, featuring real-time multiplayer capabilities, user authentication, tournament systems, and comprehensive player statistics tracking.

Core Features

• Real-time multiplayer Pong gameplay
• Tournament creation and management
• Player ranking and statistics
• Friend system and social features
• Match history tracking
• Local and online game modes

Technical Implementation

• WebSocket real-time communication
• Canvas-based game rendering
• RESTful API for game data
• PostgreSQL for persistent storage
• JWT-based authentication
• Responsive web design

Authentication & Two-Factor Authentication

Secure User Authentication System

Clean and modern login interface for the Transcendence gaming platform with secure authentication flow.

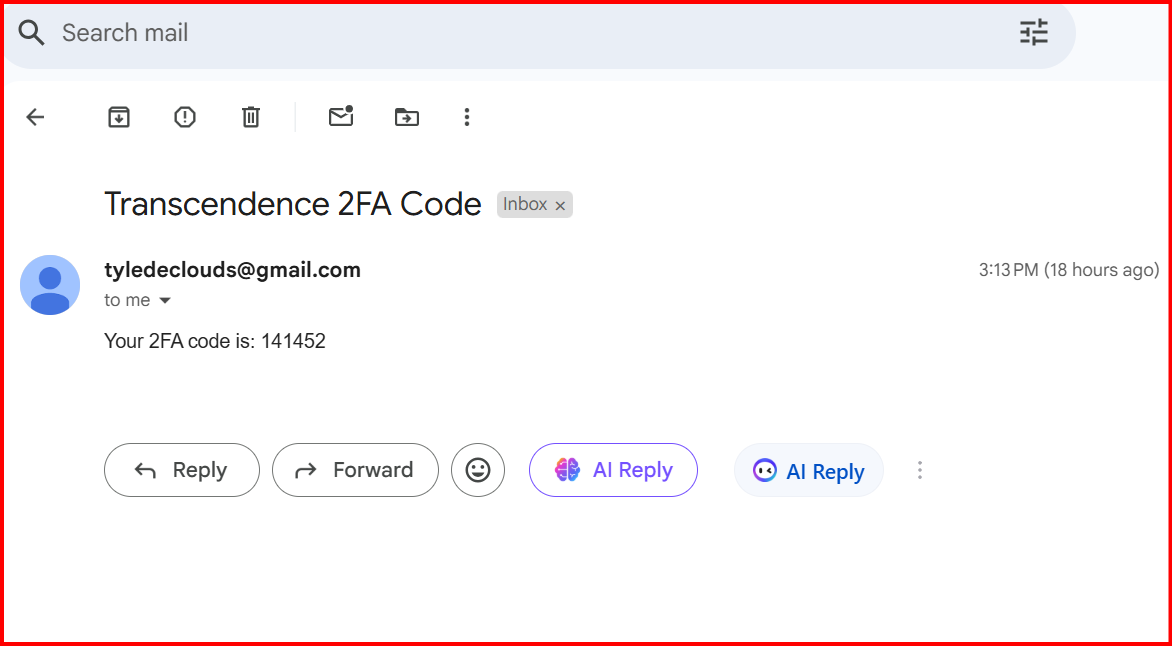

Two-factor authentication interface requiring email verification code for enhanced account security.

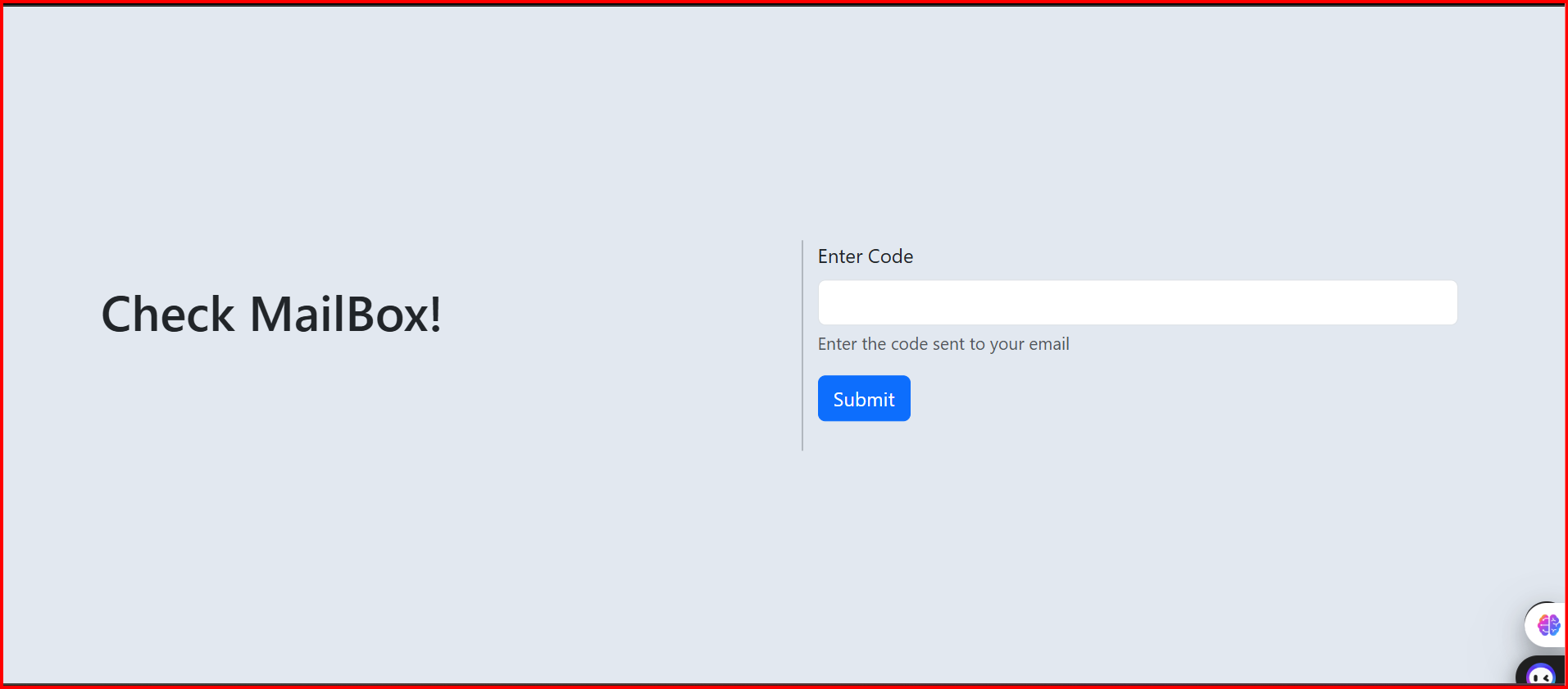

Email verification step prompting users to check their mailbox for the authentication code during login process.

The authentication system implements multi-layer security with email-based two-factor authentication, ensuring robust protection against unauthorized access while maintaining user-friendly experience.

Security Features

• Email-based 2FA
• JWT token management
• Session timeout
• Password encryption
• Rate limiting

User Experience

• Clean interface design
• Clear verification steps
• Email notifications
• Mobile responsive
• Accessibility support

Integration

• API Gateway routing
• Database user management
• Email service integration
• Frontend state management
• Backend validation
